1. Synthetic Pumping Test - Introduction

Introduction

What is TTim

TTim uses the Laplace Transform Analytic Element Method (AEM) to derive a solution to transient flow in multi-layered systems. TTim uses discrete features such as Wells and Line-elements to represent real-world aquifer features of interest.

In this notebook we demonstrate:

• How to specify a simple conceptual model consisting of one confining layer and one well

• Simulate the model

• Calibrate a aquifer parameters by providing data from observation wells

• Generate Confidence Intervals from calibration

To achieve this we will create a Model, sample some observations add noise and try to find the model parameters through fitting

We begin by importing the required libraries

Step 1: Import the Required Libraries

import matplotlib.pyplot as plt  # Plotting library
import numpy as np  # Numpy

import ttim

Step 2: Set Model Parameters

We set the model parameters with dimensions in meters and time in days

H = 7  # aquifer thickness [m]
k = 70  # hydraulic conductivity [m/d]
S = 1e-4  # specific storage fo the aquifer
Q = 788  # constant discharge [m/d]
d1 = 30  # distance of observation well 1 to pumpinq well
d2 = 90  # distance of observation well 2 to pumpinq well (same as Oude Korendijk)

Step 3: Loading Data:

• Since we are modelling a synthetic example. We will just borrow the time interval from another pumping test

• Data consistis of two columns:

  • First column is time in minutes

  • Second column is the piezometer level in meters above mean sea level [amsl]

data1 = np.loadtxt("data/piezometer_h30.txt", skiprows=1)
t = data1[:, 0] / 60 / 24  # convert min to days

As seen above, we have loaded the data as a numpy array. That is the preffered format for loading data into TTim.

Step 4: Creating a Conceptual Model

We will model our aquifer using ModelMaq, which is the 2d model interface from TTim. It assumes horizontal stacking of layers consiting of one aquifer and a leaky aquitard.

ml = ttim.ModelMaq(
    kaq=k,  # Hydraulic Conductivity of the aquifer
    # Top and bottom dimensions of the aquifer layer.
    # The leaky aquitard can have 0 thickness:
    z=[-18, -25],
    Saq=1e-4,  # Specific storage of the aquifers
    # the minimum time for which heads can be computed after any change
    # in boundary condition:
    tmin=1e-5,
    tmax=1,  # The maximum time for which heads will be computed
)

Now we add the Well element at position (0,0) with screen radius of 10 cm

w = ttim.Well(
    ml,  # Model where we add the well element
    xw=0,  # Position x
    yw=0,  # Position y
    rw=0.1,  # Well radius,
    tsandQ=[(0, 788)],  # Tuple describing starting time and discharge
)

We can now ‘solve’ the model and compute the heads at the two observation locations

ml.solve(silent="False")

# To compute the heads at the specified time intervals and location, we use the 'head'
# method
h1 = ml.head(
    x=d1,  # location of observation well 1
    y=0,
    t=t,  # Time array that the heads will be returned for
)
h2 = ml.head(
    d2, 0, t
)  # Computing heads at distance d2, and time array t for observation well 2

# We can take a look at the data:

h1

array([[-2.28275005e-04, -7.70478494e-03, -3.18554789e-02,
        -5.15317124e-02, -7.77470940e-02, -1.06832914e-01,
        -1.36233675e-01, -1.57179785e-01, -1.76793143e-01,
        -1.96853417e-01, -2.16516483e-01, -2.50176995e-01,
        -2.78596120e-01, -3.02578736e-01, -3.08282745e-01,
        -3.25241029e-01, -3.58423647e-01, -3.97875560e-01,
        -4.48679374e-01, -4.73964011e-01, -5.01394438e-01,
        -5.21357146e-01, -5.47533636e-01, -5.86237506e-01,
        -6.08113174e-01, -6.56622524e-01, -6.90311059e-01,
        -7.28971842e-01, -7.54845223e-01, -7.78144650e-01,
        -8.14919239e-01, -8.43451038e-01, -8.68180109e-01,
        -8.84950599e-01]])

The head method output a numpy array with dimensions [number of aquifer layers, number of time data]. In this case we only have one row

Step 5: Demonstration of Calibration with TTim

To demonstrate the capability of TTim for deriving aquifer parameters with drawdown data, we will first add noise to the sampled data. We will test the model performance with two standard devitations: 0.02 and 0.05

# np.savetxt('data/syn_30_0.0.txt', h1[0])
# np.savetxt('data/syn_90_0.0.txt', h2[0])
# print(h2[0])

Creating the arrays with noise for sigma = 0.02

rnd = np.random.default_rng(5)  # Adding a Random seed
he12 = h1[0] - rnd.random(len(t)) * 0.02
he22 = h2[0] - rnd.random(len(t)) * 0.02
np.savetxt("data/syn_p30_0.02.txt", he12)
np.savetxt("data/syn_p90_0.02.txt", he22)

Creating the arrays with noise for sigma = 0.05

rnd = np.random.default_rng(4)  # Adding a Random seed
he15 = h1[0] - rnd.random(len(t)) * 0.05
he25 = h2[0] - rnd.random(len(t)) * 0.05
np.savetxt("data/syn_p30_0.05.txt", he15)
np.savetxt("data/syn_p90_0.05.txt", he25)

Plotting and checking the noise added data:

fig = plt.figure(figsize=(8, 5))
plt.semilogx(t, he12, ".", label="obs at 30 m with $\sigma$ =0.02")
plt.semilogx(t, h1[0], label="modelled heads at 30 m (obs 1)")
plt.semilogx(t, he22, ".", label="obs at 90 m with $\sigma$ =0.02")
plt.semilogx(t, h2[0], label="modelled heads at 90 m (obs 2)")
plt.legend()
plt.xlabel("time (d)")
plt.ylabel("drawdown (m)")
fig.title("Drawdown model and observations with noise: $\sigma$ = 0.02");

---------------------------------------------------------------------------
AttributeError                            Traceback (most recent call last)
Cell In[12], line 9
      7 plt.xlabel("time (d)")
      8 plt.ylabel("drawdown (m)")
----> 9 fig.title("Drawdown model and observations with noise: $\sigma$ = 0.02");

AttributeError: 'Figure' object has no attribute 'title'

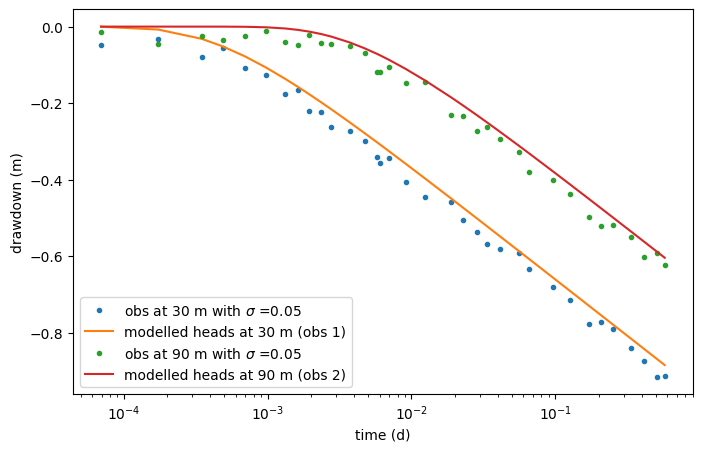

fig = plt.figure(figsize=(8, 5))
plt.semilogx(t, he15, ".", label="obs at 30 m with $\sigma$ =0.05")
plt.semilogx(t, h1[0], label="modelled heads at 30 m (obs 1)")
plt.semilogx(t, he25, ".", label="obs at 90 m with $\sigma$ =0.05")
plt.semilogx(t, h2[0], label="modelled heads at 90 m (obs 2)")
plt.legend()
plt.xlabel("time (d)")
plt.ylabel("drawdown (m)")
fig.title("Drawdown model and observations with noise: $\sigma$ = 0.05");

---------------------------------------------------------------------------
AttributeError                            Traceback (most recent call last)
Cell In[13], line 9
      7 plt.xlabel("time (d)")
      8 plt.ylabel("drawdown (m)")
----> 9 fig.title("Drawdown model and observations with noise: $\sigma$ = 0.05");

AttributeError: 'Figure' object has no attribute 'title'

Step 5.1: Calibration of the model using the noisy data

Calibrate the model using the \(\sigma \) = 0.02 noisy data from observation well 1.

• We calibrate the model by creating a Calibrate object with the initial model as input.

• Then we set the parameter initial values using the set_parameter method

• we add the observation data with the series method

• And fit

ca23 = ttim.Calibrate(ml)  # TTim class for model calibration
# Setting initial parameters values for calibration
ca23.set_parameter(name="kaq0", initial=10)  # Hydraulic Conductivity
ca23.set_parameter(name="Saq0", initial=1e-3)  # Specific Storage

ca23.series(  # Adding the observations for calibration
    name="obs1",  # Observation well 1
    x=d1,  # Location
    y=0,
    t=t,  # Time Array
    h=he12,  # Drawdown noisy data for well 1
    layer=0,  # Aquifer layer where we have the observations from
)
ca23.fit(report=True)

...............................
Fit succeeded.
[[Fit Statistics]]
    # fitting method   = leastsq
    # function evals   = 28
    # data points      = 34
    # variables        = 2
    chi-square         = 0.00167385
    reduced chi-square = 5.2308e-05
    Akaike info crit   = -333.245635
    Bayesian info crit = -330.192914
[[Variables]]
    kaq0_0_0:  70.2681327 +/- 0.41902993 (0.60%) (init = 10)
    Saq0_0_0:  9.0980e-05 +/- 1.9082e-06 (2.10%) (init = 0.001)
[[Correlations]] (unreported correlations are < 0.100)
    C(kaq0_0_0, Saq0_0_0) = -0.8544

/tmp/ipykernel_1396/2588083815.py:3: DeprecationWarning: Setting layers in the parameter name is deprecated. Set the layers= keyword argument for parameter 'kaq0' to silence this warning. The parameter name can still include layer info, but this will be ignored in a future version of TTim.
  ca23.set_parameter(name="kaq0", initial=10)  # Hydraulic Conductivity
/tmp/ipykernel_1396/2588083815.py:4: DeprecationWarning: Setting layers in the parameter name is deprecated. Set the layers= keyword argument for parameter 'Saq0' to silence this warning. The parameter name can still include layer info, but this will be ignored in a future version of TTim.
  ca23.set_parameter(name="Saq0", initial=1e-3)  # Specific Storage

We can already see the results from the calibration if we set report = True in the fit method. Besides fit statistics, we also get the Variables, with confidence interval and the correlations between variables during fitting process.

We can also check the calibrated parameters:

ca23.parameters

	layers	optimal	std	perc_std	pmin	pmax	initial	inhoms	parray
kaq0_0_0	None	70.268133	0.419030	0.596330	-inf	inf	10.000	None	[[70.26813265202885]]
Saq0_0_0	None	0.000091	0.000002	2.097379	-inf	inf	0.001	None	[[9.097953436512807e-05]]

The display function returns a data frame with initial and optimal values for each parameter, besides the standard deviation of the estimate

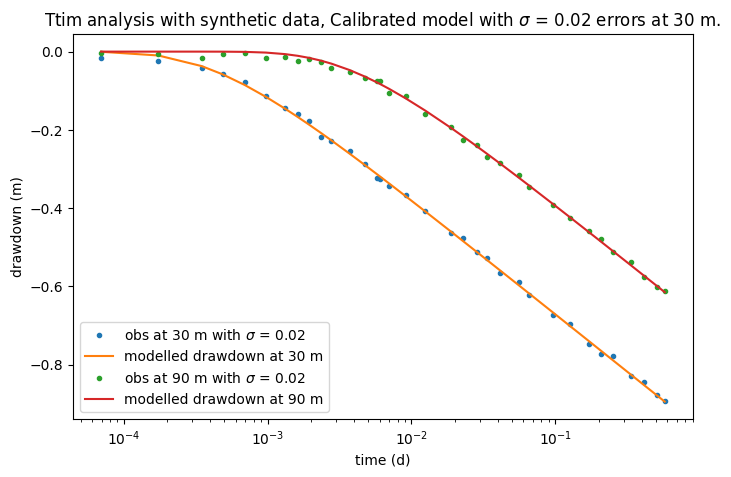

We can now compare the model performance for both observation wells

print("rmse:", ca23.rmse())  # Return the RMSE error for the calibration
h123 = ml.head(d1, 0, t)  # Compute drawdown of the calibrated model for obs 1
h223 = ml.head(d2, 0, t)  # Compute drawdown for obs 2
plt.figure(figsize=(8, 5))
plt.semilogx(t, he12, ".", label="obs at 30 m with $\sigma$ = 0.02")
plt.semilogx(t, h123[0], label="modelled drawdown at 30 m")
plt.semilogx(t, he22, ".", label="obs at 90 m with $\sigma$ = 0.02")
plt.semilogx(t, h223[0], label="modelled drawdown at 90 m")
plt.xlabel("time (d)")
plt.ylabel("drawdown (m)")
plt.title(
    "Ttim analysis with synthetic data, "
    "Calibrated model with $\sigma$ = 0.02 errors at 30 m."
)
plt.legend();

rmse: 0.007016472849630673

Now we do the same procedure as before to calibrate the model, but now using the observation data from well 2:

ca29 = ttim.Calibrate(ml)
ca29.set_parameter(name="kaq0", initial=10)
ca29.set_parameter(name="Saq0", initial=1e-3)
ca29.series(name="obs2", x=d2, y=0, t=t, h=he22, layer=0)
ca29.fit(report=True)
display(ca29.parameters)

.................................
....
Fit succeeded.
[[Fit Statistics]]
    # fitting method   = leastsq
    # function evals   = 34
    # data points      = 34
    # variables        = 2
    chi-square         = 0.00148507
    reduced chi-square = 4.6408e-05
    Akaike info crit   = -337.314244
    Bayesian info crit = -334.261523
[[Variables]]
    kaq0_0_0:  71.2273988 +/- 0.70307832 (0.99%) (init = 10)
    Saq0_0_0:  8.7833e-05 +/- 2.0051e-06 (2.28%) (init = 0.001)
[[Correlations]] (unreported correlations are < 0.100)
    C(kaq0_0_0, Saq0_0_0) = -0.8313

/tmp/ipykernel_1396/175811658.py:2: DeprecationWarning: Setting layers in the parameter name is deprecated. Set the layers= keyword argument for parameter 'kaq0' to silence this warning. The parameter name can still include layer info, but this will be ignored in a future version of TTim.
  ca29.set_parameter(name="kaq0", initial=10)
/tmp/ipykernel_1396/175811658.py:3: DeprecationWarning: Setting layers in the parameter name is deprecated. Set the layers= keyword argument for parameter 'Saq0' to silence this warning. The parameter name can still include layer info, but this will be ignored in a future version of TTim.
  ca29.set_parameter(name="Saq0", initial=1e-3)

	layers	optimal	std	perc_std	pmin	pmax	initial	inhoms	parray
kaq0_0_0	None	71.227399	0.703078	0.987090	-inf	inf	10.000	None	[[71.2273988429368]]
Saq0_0_0	None	0.000088	0.000002	2.282849	-inf	inf	0.001	None	[[8.78328947607833e-05]]

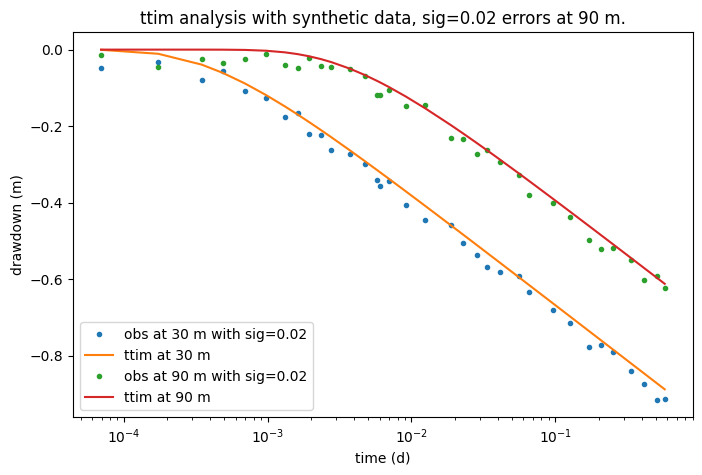

We can once again check the model performance with the new calibrated model

print("rmse:", ca29.rmse())
h129 = ml.head(d1, 0, t)
h229 = ml.head(d2, 0, t)
plt.figure(figsize=(8, 5))
plt.semilogx(t, he15, ".", label="obs at 30 m with sig=0.02")
plt.semilogx(t, h129[0], label="ttim at 30 m")
plt.semilogx(t, he25, ".", label="obs at 90 m with sig=0.02")
plt.semilogx(t, h229[0], label="ttim at 90 m")
plt.legend()
plt.xlabel("time (d)")
plt.ylabel("drawdown (m)")
plt.title("ttim analysis with synthetic data, sig=0.02 errors at 90 m.")
plt.legend(loc="best");

rmse: 0.006608972288941686

Step 5.2: Calibrate with two datasets simultaneously

TTim can also analyse the pumping tests using drawdown data from more than one borehole.

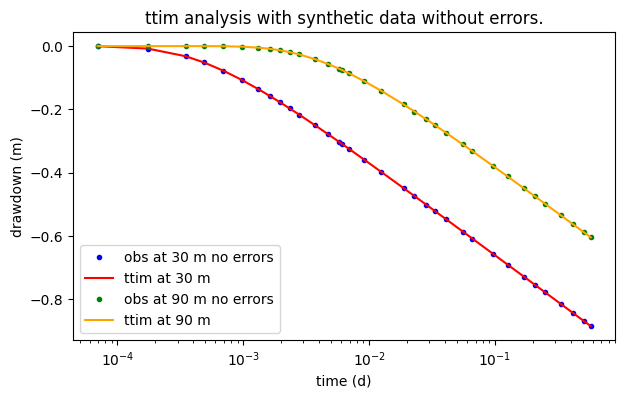

Here we calibrate the model using the data without error from both observation wells.

ca0 = ttim.Calibrate(ml)
ca0.set_parameter(name="kaq0", initial=10)
ca0.set_parameter(name="Saq0", initial=1e-3)
ca0.series(name="obs1", x=d1, y=0, t=t, h=h1[0], layer=0)
ca0.series(name="obs2", x=d2, y=0, t=t, h=h2[0], layer=0)
ca0.fit(report=True)
display(ca0.parameters)

...
...........................
Fit succeeded.
[[Fit Statistics]]
    # fitting method   = leastsq
    # function evals   = 27
    # data points      = 68
    # variables        = 2
    chi-square         = 5.0869e-15
    reduced chi-square = 7.7075e-17
    Akaike info crit   = -2520.94938
    Bayesian info crit = -2516.51036
[[Variables]]
    kaq0_0_0:  69.9999991 +/- 4.2601e-07 (0.00%) (init = 10)
    Saq0_0_0:  1.0000e-04 +/- 1.8450e-12 (0.00%) (init = 0.001)
[[Correlations]] (unreported correlations are < 0.100)
    C(kaq0_0_0, Saq0_0_0) = -0.8296

/tmp/ipykernel_1396/1967599907.py:2: DeprecationWarning: Setting layers in the parameter name is deprecated. Set the layers= keyword argument for parameter 'kaq0' to silence this warning. The parameter name can still include layer info, but this will be ignored in a future version of TTim.
  ca0.set_parameter(name="kaq0", initial=10)
/tmp/ipykernel_1396/1967599907.py:3: DeprecationWarning: Setting layers in the parameter name is deprecated. Set the layers= keyword argument for parameter 'Saq0' to silence this warning. The parameter name can still include layer info, but this will be ignored in a future version of TTim.
  ca0.set_parameter(name="Saq0", initial=1e-3)

	layers	optimal	std	perc_std	pmin	pmax	initial	inhoms	parray
kaq0_0_0	None	69.999999	4.260110e-07	6.085872e-07	-inf	inf	10.000	None	[[69.99999912197462]]
Saq0_0_0	None	0.000100	1.845050e-12	1.845050e-06	-inf	inf	0.001	None	[[9.999999960279965e-05]]

The obtained results match exactly the input parameters

print("rmse:", ca0.rmse())
h1n = ml.head(d1, 0, t)
h2n = ml.head(d2, 0, t)
plt.figure(figsize=(7, 4))
plt.semilogx(t, h1[0], "b.", label="obs at 30 m no errors")
plt.semilogx(t, h1n[0], color="r", label="ttim at 30 m")
plt.semilogx(t, h2[0], "g.", label="obs at 90 m no errors")
plt.semilogx(t, h2n[0], color="orange", label="ttim at 90 m")
plt.xlabel("time (d)")
plt.ylabel("drawdown (m)")
plt.title("ttim analysis with synthetic data without errors.")
plt.legend();

rmse: 8.649154605590422e-09

We do the same, but now with drawdowns with errors with \(\sigma=0.02\).

ca2 = ttim.Calibrate(ml)
ca2.set_parameter(name="kaq0", initial=10)
ca2.set_parameter(name="Saq0", initial=1e-3)
ca2.series(name="obs1", x=d1, y=0, t=t, h=he12, layer=0)
ca2.series(name="obs2", x=d2, y=0, t=t, h=he22, layer=0)
ca2.fit()
display(ca2.parameters)

.
.
............................
Fit succeeded.

/tmp/ipykernel_1396/2875274094.py:2: DeprecationWarning: Setting layers in the parameter name is deprecated. Set the layers= keyword argument for parameter 'kaq0' to silence this warning. The parameter name can still include layer info, but this will be ignored in a future version of TTim.
  ca2.set_parameter(name="kaq0", initial=10)
/tmp/ipykernel_1396/2875274094.py:3: DeprecationWarning: Setting layers in the parameter name is deprecated. Set the layers= keyword argument for parameter 'Saq0' to silence this warning. The parameter name can still include layer info, but this will be ignored in a future version of TTim.
  ca2.set_parameter(name="Saq0", initial=1e-3)

	layers	optimal	std	perc_std	pmin	pmax	initial	inhoms	parray
kaq0_0_0	None	70.532659	0.335874	0.476196	-inf	inf	10.000	None	[[70.53265946002102]]
Saq0_0_0	None	0.000090	0.000001	1.473752	-inf	inf	0.001	None	[[8.977771335138221e-05]]

print("rmse:", ca2.rmse())
h12 = ml.head(d1, 0, t)
h22 = ml.head(d2, 0, t)
plt.figure(figsize=(8, 5))
plt.semilogx(t, he12, "b.", label="obs at 30 m, sig=0.02")
plt.semilogx(t, h12[0], color="r", label="ttim at 30 m")
plt.semilogx(t, he22, "g.", label="obs at 90 m, sig=0.02")
plt.semilogx(t, h22[0], color="orange", label="ttim at 90 m")
plt.xlabel("time (d)")
plt.ylabel("drawdown (m)")

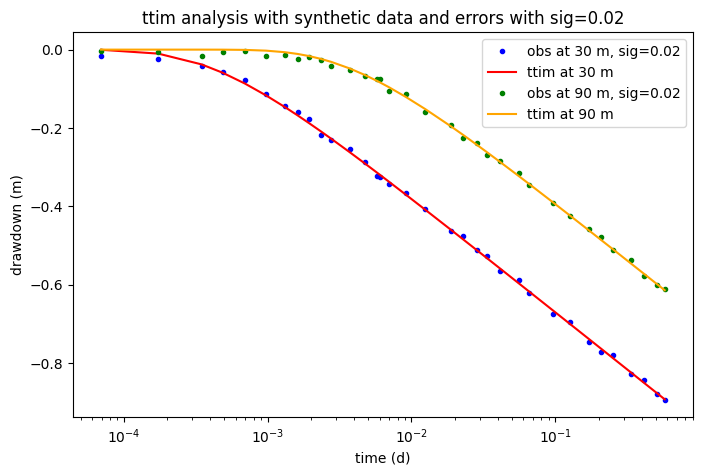

plt.title("ttim analysis with synthetic data and errors with sig=0.02")
plt.legend();

rmse: 0.0068920630864196045

Drawdowns with errors with \(\sigma=0.05\).

ca5 = ttim.Calibrate(ml)
ca5.set_parameter(name="kaq0", initial=10)
ca5.set_parameter(name="Saq0", initial=1e-3)
ca5.series(name="obs1", x=d1, y=0, t=t, h=he15, layer=0)
ca5.series(name="obs2", x=d2, y=0, t=t, h=he25, layer=0)
ca5.fit()
display(ca5.parameters)

..
.
.............................
Fit succeeded.

/tmp/ipykernel_1396/2824088073.py:2: DeprecationWarning: Setting layers in the parameter name is deprecated. Set the layers= keyword argument for parameter 'kaq0' to silence this warning. The parameter name can still include layer info, but this will be ignored in a future version of TTim.
  ca5.set_parameter(name="kaq0", initial=10)
/tmp/ipykernel_1396/2824088073.py:3: DeprecationWarning: Setting layers in the parameter name is deprecated. Set the layers= keyword argument for parameter 'Saq0' to silence this warning. The parameter name can still include layer info, but this will be ignored in a future version of TTim.
  ca5.set_parameter(name="Saq0", initial=1e-3)

	layers	optimal	std	perc_std	pmin	pmax	initial	inhoms	parray
kaq0_0_0	None	71.435305	0.824497	1.154188	-inf	inf	10.000	None	[[71.43530489100316]]
Saq0_0_0	None	0.000074	0.000003	3.707179	-inf	inf	0.001	None	[[7.362194721249294e-05]]

print("rmse:", ca5.rmse())
h15 = ml.head(d1, 0, t)
h25 = ml.head(d2, 0, t)
plt.figure(figsize=(8, 5))
plt.semilogx(t, he15, "b.", label="obs at 30 m")
plt.semilogx(t, h15[0], color="r", label="ttim at 30 m")
plt.semilogx(t, he25, "g.", label="obs at 90 m")
plt.semilogx(t, h25[0], color="orange", label="ttim at 90 m")
plt.xlabel("time (d)")
plt.ylabel("drawdown (m)")

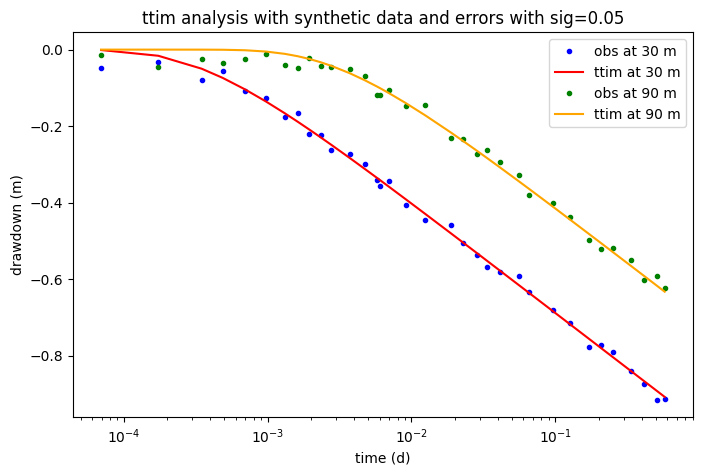

plt.title("ttim analysis with synthetic data and errors with sig=0.05")
plt.legend();

rmse:
 0.017262547701310388

Model performed also well for \(\sigma = 0.05\)

Final Remarks

In this example we have succesfully:

• Initiated a TTim model instance using the Model class

• Sampled observation data from the model and defined the synthetic data by adding noise.

• Calibrated the model with the Calibrate class using one and two calibration wells

• Inspected the calibration performance
